How Gear Ratios Work

You see gears in just about everything that has spinning parts. For example, car engines and transmissions contain lots of gears. If you ever open up a VCR and look inside, you will see it is full of gears. Wind-up, grandfather and pendulum clocks contain plenty of gears, especially if they have bells or chimes. You probably have a power meter on the side of your house, and if it has a see-through cover, you can see that it contains 10 or 15 gears. Gears are everywhere where there are engines and motors producing rotational motion. In this edition of How Stuff Works , you will learn about gears, gear ratios and gear trains so that you can understand what all the different gears you see are doing.

Gears are generally used for one of four different reasons:

To reverse the direction of rotation
To increase or decrease the speed of rotation
To move rotational motion to a different axis
To keep the rotation of two axis synchronized

You can see effects 1, 2 and 3 in the figure above. In this figure, you can see that the two gears are rotating in opposite directions, that the smaller gear is spinning twice as fast as the larger gear, and that the axis of rotation of the smaller gear is to the right of the axis of rotation for the larger gear. The fact that one gear is spinning twice as fast as the other results from the ratio between the gears, or the gear ratio (Check out our gear ratio chart for more info). In this figure, the diameter of the gear on the left is twice that of the gear on the right. The gear ratio is therefore 2:1 (pronounced "two to one"). If you watch the figure you can see the ratio: Every time the larger gear goes around once, the smaller gear goes around twice. You can see that if both gears had the same diameter, they would rotate at the same speed but in opposite directions.

Contents

Understanding the concept of the gear ratio
Gear Trains
Other Uses for Gears
An Example

Understanding the concept of the gear ratio

Understanding the concept of the gear ratio is easy if you understand the concept of the circumference of a circle. Keep in mind that the circumference of a circle is equal to the diameter of the circle multiplied by Pi (Pi is equal to 3.14159...). Therefore, if you have a circle or a gear with a diameter of one inch, the circumference of that circle will be 3.14159 inches.

The following figure shows how the circumference of a circle with a diameter of 1.27 inches is equal to a linear distance of 4 inches:

Let's say that you had another circle whose diameter was 1.27 inches / 2 = 0.635 inches, and you rolled it in the same way as in this figure. You would find that, because its diameter is one half of the circle's in the figure, it has to complete two full rotations to cover the same 4 inch line. This explains why two gears, one half as big as the other, have a gear ratio of 2:1. The smaller gear has to spin twice to cover the same distance covered when the larger gear spins once.

Most gears that you see in real life have teeth. The teeth have three advantages:

They prevent slippage between the gears - therefore axles connected by gears are always synchronized exactly with one another.
They make it possible to determine exact gear ratios - you just count the number of teeth in the two gears and divide. So if one gear has 60 teeth and another has 20, the gear ratio when these two gears are connected together is 3:1.
They make it so that slight imperfections in the actual diameter and circumference of two gears don't matter. The gear ratio is controlled by the number of teeth even if the diameters are a bit off.

Gear Trains

To create large gear ratios, gears are often connected together in gear trains, as shown here:

The right-hand (purple) gear in the train is actually made in two parts, as shown. A small gear and a larger gear are connected together, one on top of the other. Gear trains often consist of multiple gears in the train, as shown in the following two figures:

In the case above, the purple gear turns at a rate twice that of the blue gear. The green gear turns at twice the rate as the purple gear. The red gear turns at twice the rate as the green. The gear train shown below has a higher gear ratio:

In this train, the smaller gears are one-fifth the size of the larger gears. That means that if you connect the purple gear to a motor spinning at 100 rpm (revolutions rer minute), the green gear will turn at a rate of 500 rpm and the red gear will turn at a rate of 2,500 rpm. In the same way, you could attach a 2,500 rpm motor to the red gear to get 100 rpm on the purple gear. If you can see inside your power meter and it is of the older style with five mechanical dials, you will see that the five dials are connected to one another through a gear train like this, with the gears having a ratio of 10:1. Because the dials are directly connected to one another, they spin in opposite directions (you will see that the numbers are reversed on dials next to one another). For more information on gear ratios, visit our gear ratio chart.

Other Uses for Gears

There are many other ways to use gears. For example, you can use conical gears to bend the axis of rotation in a gear train by 90 degrees. The most common place to find conical gears like this is in the differential of a rear-wheel-drive car. A differential bends the rotation of the engine 90 degrees to drive the rear wheels:

Another specialized gear train is called a planetary gear train. Planetary gears solve the following problem. Let's say you want a gear ratio of 6:1. One way to create that ratio is with the following three-gear train:

In this train, the red gear has three times the diameter of the yellow gear, and the blue gear has two times the diameter of the red gear (giving a 6:1 ratio). However, imagine that you want the axis of the output gear to be the same as that of the input gear. A common place to need this same-axis capability is in an electric screwdriver. In that case, you can use a planetary gear system, as shown here:

In this gear system, the yellow gear engages all three red gears simultaneously. They are all three attached to a plate, and they engage the inside of the blue gear instead of the outside. Because there are three red gears instead of one, this gear train is extremely rugged. The ouput shaft is taken from the plate, and the blue gear is held stationary. You can see a picture of an two-stage planetary gear system on the electric screwdriver page.

An Example

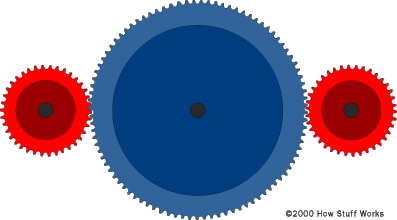

Finally, imagine the following situation: you have two red gears that you want to keep synchronized, but they are some distance apart. You can place a big gear between them if you want them to have the same directions of rotation:

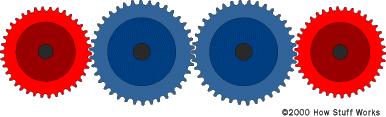

Or you can use two equal-sized gears if you want them to have opposite rotational direction:

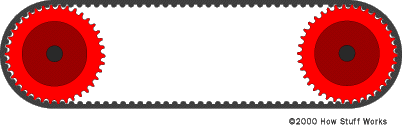

However, in both of these cases the extra gears are likely to be heavy and you need to create axles for them. In these cases the common solution is to use either a chain or a toothed belt, as shown here:

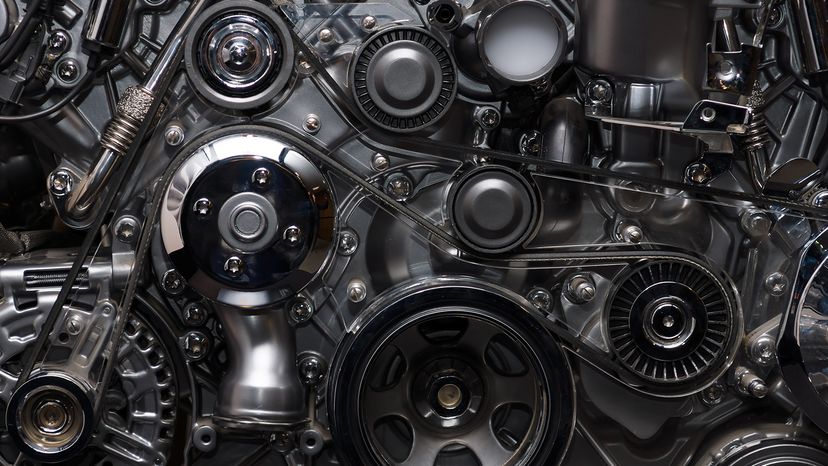

The advantages of chains and belts are light weight, the ability to separate the two gears by some distance, and the ability to connect many gears together on the same chain or belt. For example, in a car engine, the same toothed belt might engage the crankshaft, two camshafts and the alternator. If you had to use gears in place of the belt, it would be a lot harder! For more information on gear ratios, visit our gear ratio chart.

Originally Published: Apr 1, 2000

Gear Ratios FAQ

How do you calculate gear ratio?

You just count the number of teeth in the two gears and divide. So if one gear has 60 teeth and another has 20, the gear ratio when these two gears are connected together is 3:1.

Is it better to have a higher or lower gear ratio?

If you want better fuel mileage and less noise, then you will want a higher gear ratio.

What does 4.11 gear ratio mean?

This is an ideal gear ratio for everyday driving.

Do you want a higher or lower gear ratio?

If you want optimal towing capacity, then you're going to want a higher gear ratio of at least 4.56. Anything lower will be good for fuel economy and everyday driving.

Which gear ratio is best?

Depending on your vehicle and desired outcome, you should compare gear ratio with tire size. You can check out this HowStuffWorks chart to learn more.
